Tutorial Solidworks
How to make components rotary pump with SolidWorks. The pump components :
1. Pump Body
2. Lobe/Rotary
3. Gear
4. Cover Lobe/Rotary
5. Cover Gear
6. Spindle
7. Spie
8. Pulley
9. Cover Spindle
- Pump Body
- Run Solidworks
- Select New Part
- Select a Plane (example Right plane)
- Then select Sketch and click
- Click the Line icon and dragline
- Next, click the Line and select Construction Geometry
- Click the Smart dimension icon
- Set the geometry line size 70 mm and other dimensions as in the picture
- Click the Cyrcle icon
- Make a circle sketch as in the picture
- Click the Smart dimension icon
- Set the diameter of the two circles to 120 mm
- Click the Trim Entities icon
- Then cut the circle as in the picture
- Click the Offset Entities icon
- Then Offset the two circles with dimensions of 10 mm
- Click the Extruded Boss/Base
- Then input dimensions 40 mm

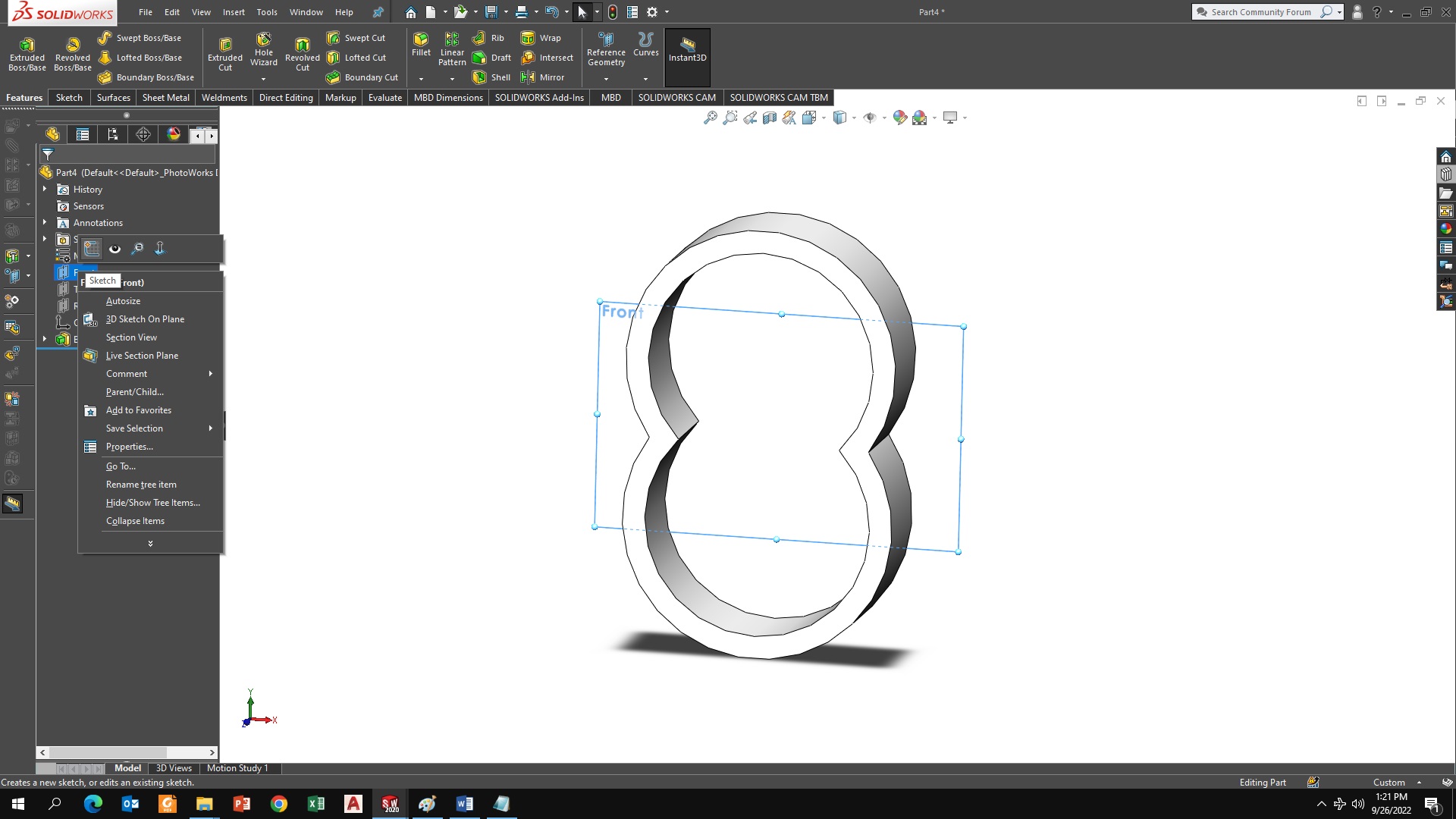

- Create a new sketch
- Select the Front Plane to start a new sketch
- Click the Surface
- Then click Convert Entities
- Click the circle icon
- Make a circle with a diameter of 18 mm like the picture
- Click Extruded Boss/Base with a dimension of 5 mm
- Click the Chamfer and input dimension 3 mm
- Create a new sketch
- Click the surface
- Select a new sketch
- Make a Circle like a picture
- Click the Smart dimension, and input the circle dimension to 38 mm
- Then click the circle and click the Convert Entities icon
- Click Extruded Boss/Base and set the dimension to 4 mm
- Click the Fillet icon
- Click the edge and dimension to 4 mm
-Create a new sketch
- Click the Surface
- Then select the new sketch
- Click the Rectangle icon and make it like the picture
- Click the Smart dimension icon
- Input dimension 95 mm x 85 mm like the picture
- Click all the rectangle line
- Select Construction Geometry
- Make a circle on the corners of the rectangle
- Click all circles and select Make equal
- Click the Smart dimension icon and circle dimension to 13 mm
- Select Extruded Boss/Base and set the dimension to 7 mm

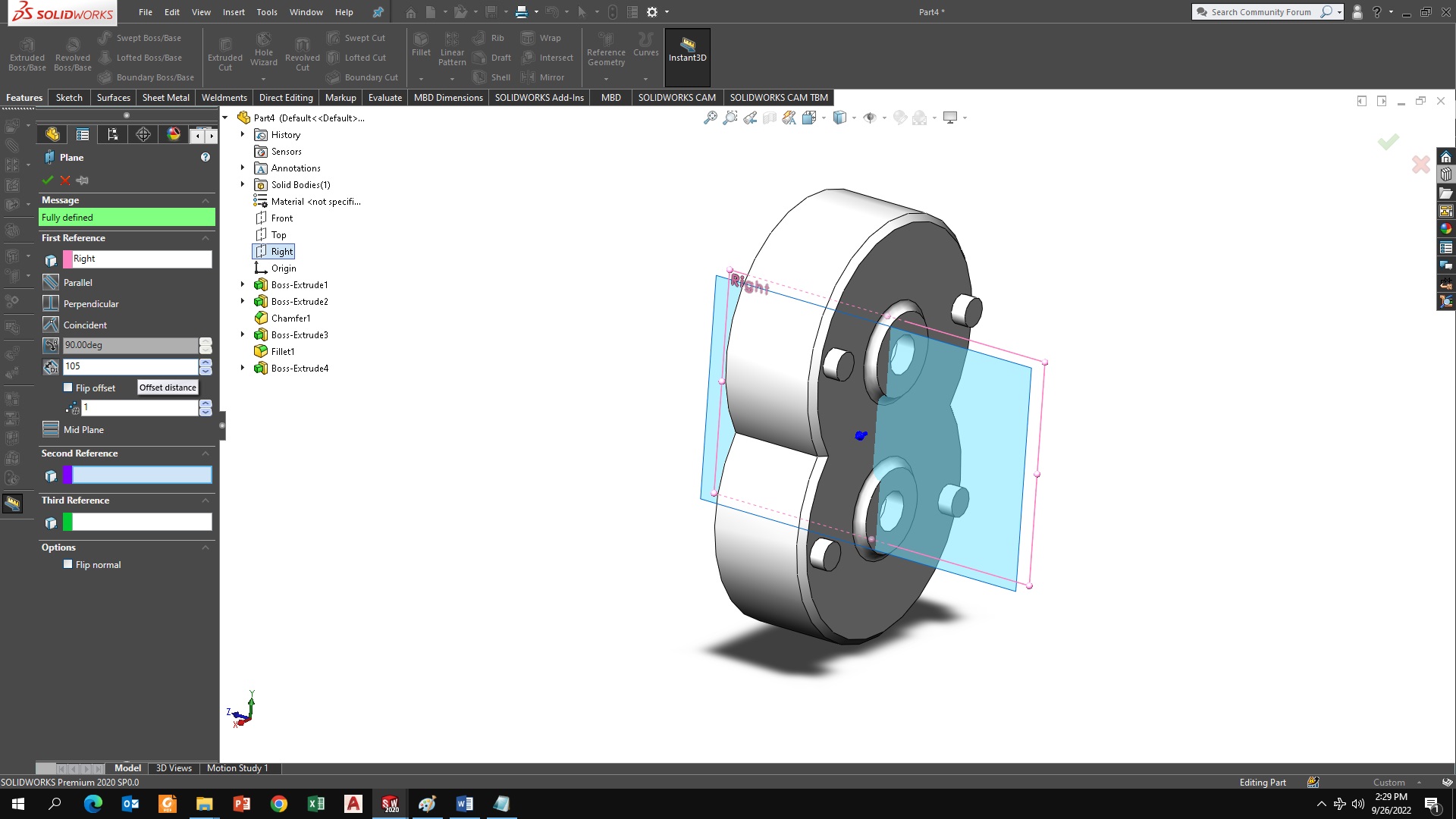

- Select the Reference geometry icon and select Plane from Right Plane distance to 105 mm
-Create a new sketch
- Click Plane 1 and select New Sketch
- Make a circle with a dimension of 40 mm and other dimensions according to the drawing
- Extruded Boss/Base according to Direction 1 like the picture
- Click Surface and select New Sketch

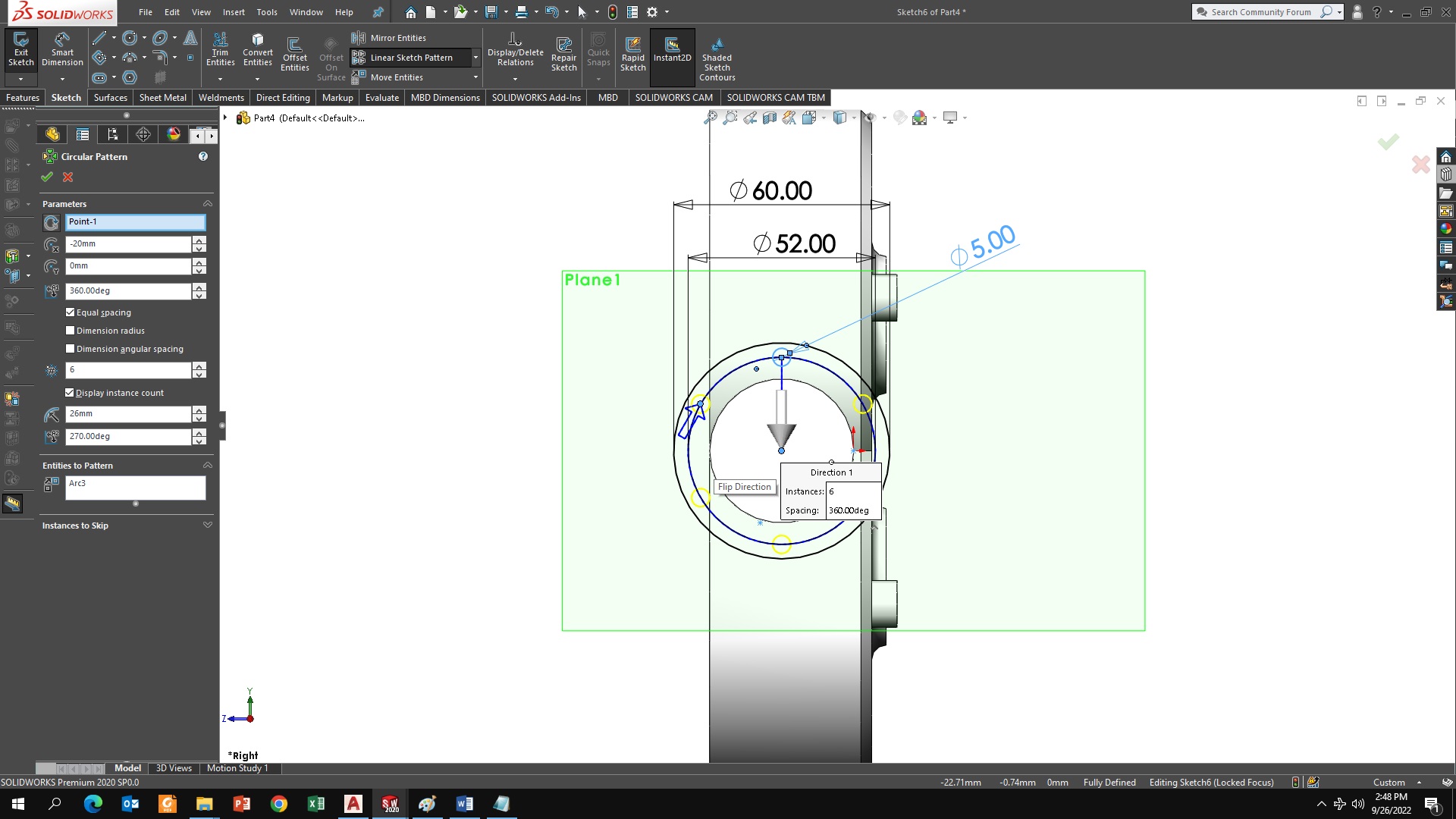

- Make a circle with a diameter of 60 mm and 52 mm
- A circle with a diameter of 52 mm makes Construction Geometry
- Create a circle with a center point on the geometry line and a diameter of 5 mm like the picture
- Click the Circular Pattern icon
- Click the circle to be a pattern
- Drag the center point to the desired point
- Input value pattern 6
- Extruded Boss/Base with a dimension of 5 mm like the picture
- Click the Mirror icon
- Mirror face/plane select Right Plane, and select Bodies to Mirror select extruded boss/base like the picture
- Click the Direct Editing icon and select Combine
- Select Add at operation type, then click Bodies to combine
- Create a sketch at the right plane
- Create a circle with a diameter of 30 mm
- Extruded Cut with direction Through All-Both
- Click surface
- Select a new sketch
- Create a circle with a diameter of 36 mm
- Extruded Cut at 3 mm
- Click the Mirror icon
- According to the picture
- Create a Hole Wizard 1
- Click surface
- Select a new sketch
- Click the Point icon
- Create a sketch like a picture
- Click the Hole Wizard icon, according to the hole type like the picture
- Create a Hole Wizard 2
- Click surface
- Select a new sketch
- Click the Offset icon with a parameter of 5 mm
- Then the offset result used as construction geometry
- Click the Point icon according to the picture
- Click the Hole Wizard icon and according to the picture
The SolidWorks tutorial on Making Rotary Pump Part1 until here, we will continue with the next component.
Thank you.
